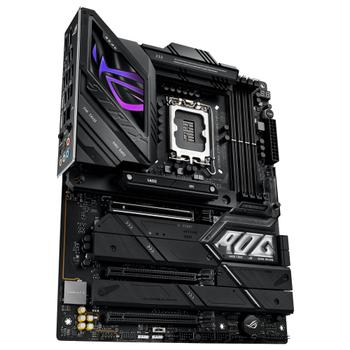

ASUS ROG STRIX Z790-E GAMING WIFI II - Bundkort - ATX - LGA1700 sokkel - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard grafik

ROG STRIX Z790-E GAMING WIFI II

• WIFI 7
• ROBUST POWER SOLUTION
  • 18+1+2 Power Stages
• GEN 5 SUPPORT
  • x1 Onboard M.2 Slot
• AI COOLING II
  • One-click fan tuning
• USB 20GBPS
  • x1 I/O port, and x1 connector for PD 3.0 at 30W
• 8000+ MT/s, AEMP II, XMP
• DIY-FRIENDLY DESIGN
• AI OVERCLOCKING
  • Effortless performance boost

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® Z790 Chipset

• 4 x DIMM slots, max. 192GB
• DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• OptiMem II
• ASUS Enhanced Memory Profile II (AEMP II)

• 1 x DisplayPort
• 1 x HDMI™ port

• Intel® CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot (support x16 mode)
• Intel® Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode)

• Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® CoreTM Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® Z790 Chipset
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Intel® Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
• Bluetooth® v5.4

• Rear USB (Total 12 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®)
• Front USB (Total 11 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge )
  • 2 x USB 5GGps headers support 4 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Gold-plated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Audio cover

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
• Storage related
  • 5 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 2 x USB 5Gbps headers support 4 additional USB 5G ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Alternation PCIe Mode Switch
  • 1 x AURA RGB header
  • 1 x CPU over voltage jumper
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header

• Extreme OC Kit
  • Start button
• Extreme Engine Digi+
  • 5K Black Metallic Capacitors
• ASUS Q-Design
  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-Antenna
  • Q-Code
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• AURA Sync
  • AURA RGB header
  • Addressable Gen 2 RGB headers
• Front Panel USB 20Gbps with PD Fast Charge Support
  • Support: up to 30W fast charging and USB Wattage Watcher
  • Output: 5V/9V max. 3A, 12V max 2.5A
  • Compatible with PD3.0

• ROG Exclusive Software
  • ROG CPU-Z
  • DTS® Sound Unbound
• ASUS Exclusive Software
  • Armoury Crate
    • AIDA64 Extreme (60 days free trial)
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4 (with AI Cooling II)
    • GameFirst
    • Power Saving
    • Sonic Studio
    • Two-Way AI Noise Cancellation
  • AI Suite 3
    • Easy Optimization with AI Overclocking
    • TPU
    • DIGI+ VRM
    • Turbo app
    • PC Cleaner
  • MyAsus
  • USB Wattage Watcher
  • Intel® Unison™
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial
• UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
    • ASUS MyHotkey
  • FlexKey
  • MemTest86

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 2 x SATA 6Gb/s cables
• Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 backplate Q-Latch package
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 2 x M.2 Rubber Packages
  • 1 x M.2 backplate Rubber Package
• PackageDocumentation
  • 1 x Quick start guide

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
