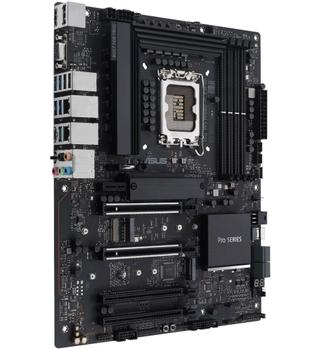

ASUS PRO WS W680-ACE IPMI LGA1700 ATX motherboard 4xDDR5 8xSATA DisplayPort 1.4 D-Sub HDMI 2.1

Pro WS W680-ACE IPMI

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1700 socket: Ready for 14th, 13th and 12th Gen Intel® Core™ Processors
• Bundle with IPMI expansion card: Equips with a dedicated Ethernet controller to BMC chip to provide the intelligence for its IPMI architecture
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
• Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

• Intel® W680 Chipset

• 4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x DisplayPort
• 1 x HDMI® port
• 1 x VGA port

• Intel® 14th 13th & 12th Gen Processors
  • 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)
• Intel® W680 Chipset
  • 2 x PCIe 3.0 x16 slots (supports x4 mode)
  • 1 x PCIe 3.0 x1 slot

• Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
• Intel® 14th 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® W680 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)

• 2 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• M.2 slot only (Key E, CNVi & PCIe)

• Rear USB (Total 8 ports)
  • 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback"
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Unique de-pop circuit

• 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x VGA port
• 2 x Intel® 2.5Gb Ethernet ports
• 5 x Audio jacks
• 1 x BIOS FlashbackTM button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin W_PUMP+ header
  • 3 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • 1 x 6-pin PCIe Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x SlimSAS port
• USB
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 1 x LPT header
  • 1 x T-sensor
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x BMC Header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Start button
  • 1 x Flexkey button
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x M.2 slot (Key E)
  • 1 x LPT_P80 Switch
  • 1 x Thunderbolt™ header

• ASUS 5X PROTECTION III
  • DIGI+ VRM (Digital power design with DrMOS)
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • SafeSlot
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-Code
  • M.2 Q-Latch
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • CPU Socket lever protector
  • SafeDIMM
  • SafeSlot
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
• Bespoke Motherboard Design & Business Focused Features
  • 24/7 Reliability

• Intel® vPro support
• ASUS Exclusive Software
  • Armoury Crate
  • Fan Xpert 4
  • Power Saving
  • ASUS CPU-Z
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
  • IT Management software supported
  • ASUS Control Center Express(ACCE)
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • FlexKey

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x Q-connector
  • 1 x M.2 Rubber Packages
  • 2 x Screw package for M.2 SSD
  • 1 x Screw package for M.2 Key E
  • 1 x I/O Shield
• IPMI Expansion Card and related accessories
  • 1 x IPMI expansion card
  • 1 x BMC cable
  • 1 x Power On/Off cable
  • 1 x Reset cable
  • 1 x USB 2.0 cable
  • 1 x IPMI Expansion Card user guide
• Documentation
  • 1 x User guide
  • 1 x ACC Express Activation Key Card

• Windows® 11, Windows® 10 64-bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
