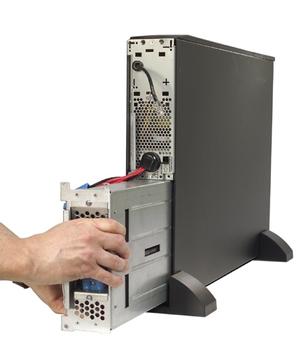

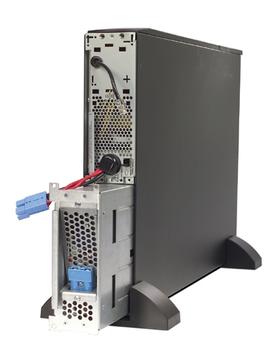

APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower SUM1500RMXLI2U APC Smart-UPS XL, 1500VA/1425W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card Features Automatic internal bypass Global safety approvals Modular design Rack/Tower convertible Remote group outlet control USB connectivity User-replaceable batteries User-replaceable modules Output Output Power Capacity 1425 Watts / 1500 VA Max Configurable Power 1425 Watts / 1500 VA Nominal Output Voltage 230V Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 89% Output Voltage Distortion Less than 5% at full load Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal Crest Factor up to 5 : 1 Waveform Type Sine wave Output Connections (9) IEC 320 C13 (2) IEC Jumpers Input Bypass Internal Bypass (Automatic and Manual) Nominal Input Voltage 230V Input Frequency 50/60 Hz +/- 5 Hz (auto sensing) Input Connections IEC-320 C14 Input voltage range for main operations 160 - 285V Input voltage adjustable range for mains operation 151 - 302V Batteries & Runtime Battery Type VRLA Included Battery Modules 1 Typical recharge time 3 hour(s) Replacement battery cartridge RBC43 RBC™ Quantity 1 Typical Backup Timeat Half Load 28.3 minutes (712.5 Watts) Typical Backup Timeat Full Load 11.9 minutes (1425 Watts) Runtime Chart Smart-UPS XL Extended Run Options NEW! APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower Communications & Management Interface Port(s) DB-9 RS-232,RJ-45 10/100 Base-T,USB Pre-Installed SmartSlot™ Cards AP9619 Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO) Optional Surge Protection and Filtering Surge energy rating 490 Joules Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height 3.40 inches ( 86 mm) Maximum Width 17.00 inches (432 mm) Maximum depth 26.70 inches (678 mm) Rack Height 2U Net Weight 103.00 lbs. ( 46.82 kg) Shipping Weight 125.00 lbs. ( 56.82 kg) Shipping Height 9.84 inches (250 mm) Shipping Width 23.46 inches (596 mm) Shipping Depth 38.58 inches (980 mm) Color Black Units per Pallet 8.00 Environmental Operating Environment 32 - 104 °F (0 - 40 °C) Operating Relative Humidity 0 - 95% Operating Elevation 0-10000 feet (0-3000 meters) Storage Temperature -4 - 113 °F (-20 - 45 °C) Storage Relative Humidity 0 - 95% Storage Elevation 0-30000 feet (0-9000 meters) Audible noise at 1 meter from surface of unit 55 dBA Online Thermal Dissipation 300 BTU/hr Conformance Regulatory Approvals C-tick,CE,EN 50091-2,EN 55022 Class A,EN 61000-3-2,GOST Standard Warranty 2 years repair or replace
